4 Lug Eyenut Cover
The 4-Lug Eyenut Cover comes with two 1/4" NPT ports on the top, centered on either side of the inlet pipe.
Call for a Quote: 1-800-966-9274

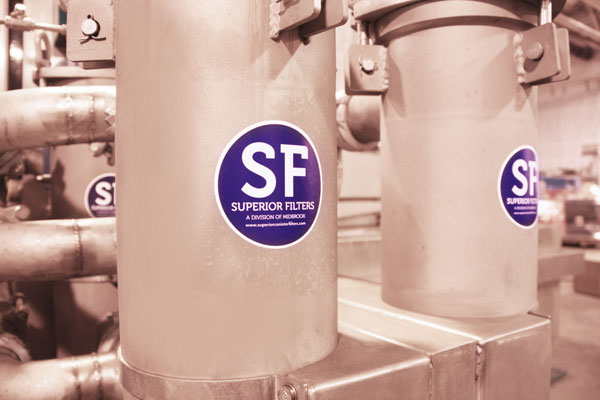

The SUPERIOR Advantage
Superior Filters is a division of Midbrook, maker of high-quality industrial washer systems. We are located in Jackson, Michigan, USA. Our filters can be found in service on machines around the world in the automotive, aeronautical, medical, and food service industries.
Superior Filters are versitile to meet the needs of your system. With options for housings, lids, inlets/outlet positions, baskets, and bags, our filters are able to meet nearly every industrial liquid filtration need.
Our filter canisters come with several amenities which make them among the highest quality filter systems on the market:
- ►Large-area, heavy-duty baskets
- ►Low pressure drops
- ►Housings are permanently piped
- ►Covers are O-ring sealed
- ►Carbon steel or stainless steel construction
- ►Adjustable tripod legs, standard on all SF-04 and SF-08 models
Flexible and Affordable
Canister Filter Systems
We make choosing the right systems easy by helping you design your ideal liquid filtration set-up in a methodical step-by-step process. Our filter experts will be happy to work with you and help you determine exactly what you need. The information below can be used as a guide for navigating some of our most popular options.
Liquid Filtration System Set Up
Single Filters
Single filters are the most cost-friendly way of filtering liquids. Single filters work for lower volume operations that do not require continuous flow.
Duplex Filters
Duplex filters permit continuous operation because flow can be switched back-and-forth between two filter vessels during regular maintainance.
Series Filters
Placing filters in a series allows for multi-step filtration. The first filter targets larger particles, and each subsequent filter targets smaller pollutants.
Canister Housing Size
Housing filter options for versitility and effectiveness.
Superior housings are for filtering and straining liquids from one micron to over 800 microns. The most popular sizes for the baskets (also known as filter canisters) is either 4" or 8". The flow rates, pressure drops, and pipe sizes vary between sizes.
Superior Filters can accomodate a range of gauge and vent ports as well as cover styles. Housings can also come with optional pressure gauges.
The baskets and canister housings come in the SF-04 and SF-08 models.
Model SF-04 4-inch Canister Filter
Flow rates at 50 gpm*
Pipe size: 3/4 through 2 inch, NPT or flanged
Three basket depths: 6, 12, or 24 inches (nominal)
Pressure rating: 150 psi (with clamp cover) and 300 psi (with eyenut cover)
Basket Data
| Depth (inches) |
Diameter (inches) |
Surface Area (sq.ft.) |
Volume (cu.in.) |
Bag Size (No.) |
|---|---|---|---|---|
| 6 | 3.9 | 0.5 | 65 | 3 |
| 12 | 3.9 | 1.0 | 130 | 4 |
| 24 | 3.9 | 2.2 | 286 | 5 |

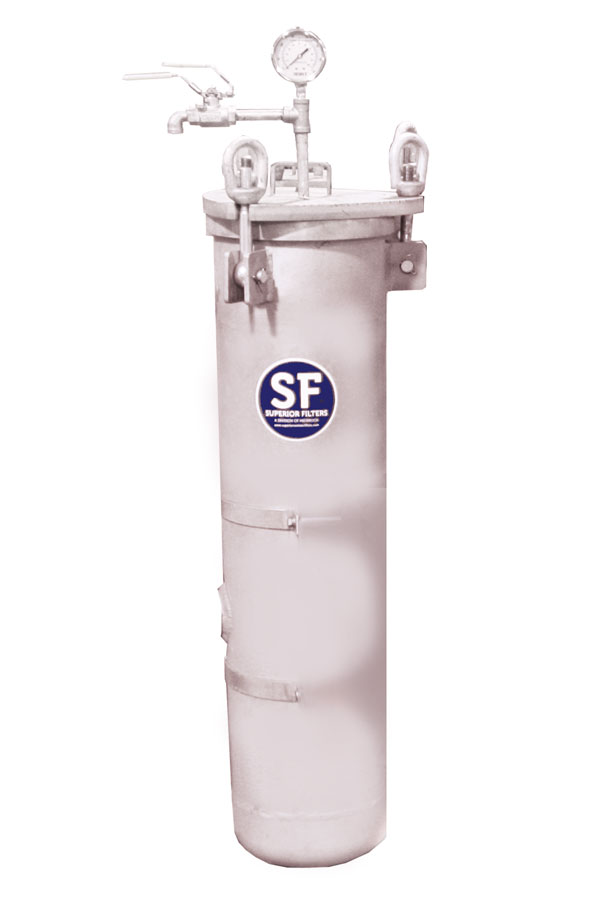

Model SF-08 8-inch Canister Filter
Flow rates at 220 gpm*
Pipe size: 3/4 through 4 inch, NPT or flanged
Two basket depths: 15 or 30 inches (nominal)
Pressure rating: 150 (with clamp cover) and 300 psi (with eyenut cover)
Basket Data
| Depth (inches) |
Diameter (inches) |
Surface Area (sq.ft.) |
Volume (cu.in.) |
Bag Size (No.) |
|---|---|---|---|---|
| 15 | 6.7 | 2.3 | 500 | 1 |
| 30 | 6.7 | 4.4 | 1000 | 2 |
Pressure Drop
Basket strainers and bag filters are usually selected so that the pressure drop does not exceed 2 psi when they are clean. Higher pressure drops may be tolerated when containment loading is low. The pressure drop data is accurate for all housing with strainer or filter bag baskets. When filter bags are added, total pressure drop becomes the sum of the pressure drop as determined below:
Viscocisty (cps)
| (H2O) | 1 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 2000 |
|---|---|---|---|---|---|---|---|---|---|
| All unlined baskets | .65 | .85 | 1.00 | 1.10 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 |
| 40-mesh lined | .73 | .95 | 1.20 | 1.40 | 1.50 | 1.80 | 1.90 | 2.00 | 2.30 |
| 80-mesh lined | .77 | 1.00 | 1.30 | 1.60 | 1.70 | 2.10 | 2.20 | 2.30 | 2.80 |
| 100-mesh lined | .93 | 1.20 | 1.50 | 1.90 | 2.10 | 2.40 | 2.60 | 2.80 | 3.50 |
| 200-mesh lined | 1.30 | 1.70 | 2.10 | 3.00 | 3.40 | 3.90 | 4.40 | 5.00 | 6.80 |
Part A.

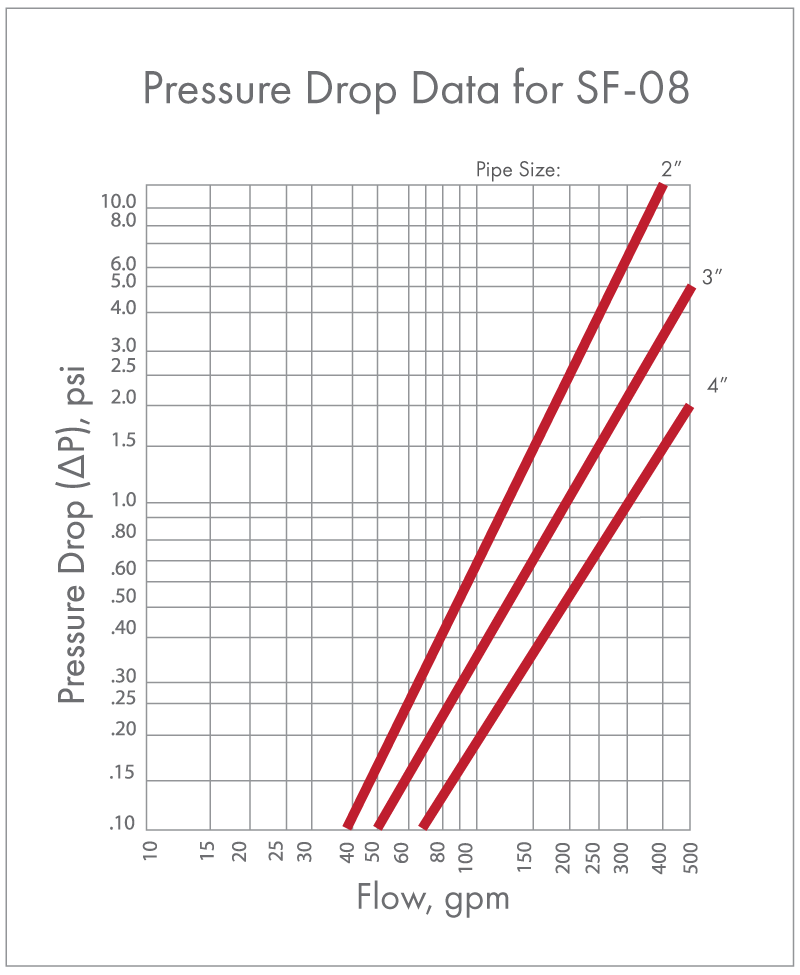

Using the desired pipe size and approximate flow rate, determine the basic pressure drop from the appropriate graph above.
Part B.
Multiply the pressure drop obtained in Part A by the viscosity correction factor found in the table above. This is the adjusted (clean) pressure drop for all baskets without filter bags.
Cover Styles
Covers are available in a variety of styles from Quick Clamp to 3- and 4-Eyebolt covers for SF models up to 8 inches. SF-04 and SF-08 are available with over-the-top inlet (goose-neck) covers as well as the top-side inlet.
Clamp Cover
The clamp cover is available on our SF-04 model and comes with a 1/4" NPT port centered on the filter.

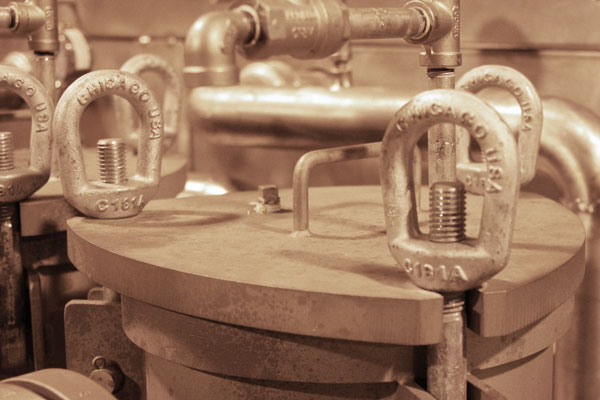

3-Lug Eyenut Cover
The 3-Lug Eyenut Cover comes with two 1/4" NPT ports centered on the cover.
Outlet Styles
We can accomodate most requests for specific inlet/outlet positions and configurations. Below are some of our standard configurations for our line of canister filters.
Style 1: Side/Bottom
- Inlet: Side
- Outlet: Bottom
Style 2: Side/Side
- Inlet: Side
- Outlet: Side
Style 3: Side/Bottom Elbow
- Inlet: Side
- Outlet: Bottom Elbow
Baskets and Filter Bags
Superior Filter's baskets permit the straining and filtering of a wide variety of fluids to retain solids of nearly any size. The baskets are made in depths to suite the housing selected and are easily removed for cleaning.
Filter Basket
Choose from the following perforation sizes: 1/4", 3/16", 9/64", 3/32", or 1/16".

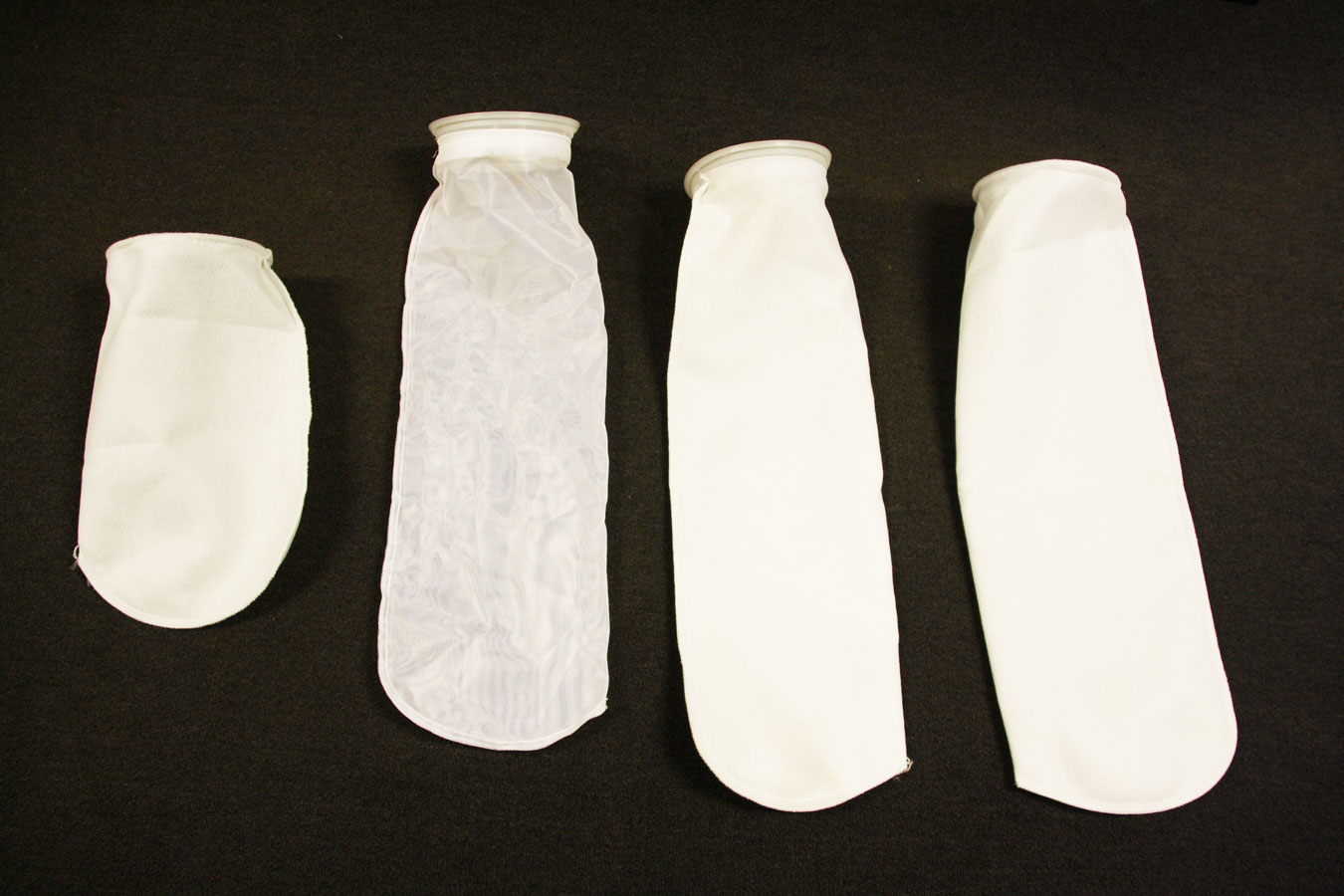

Filter Bags
Filter bags also come in many options, including the material, type of ring, size, and more. Our filter bags are available in a wide variety of mesh sizes which can strain liquids from one micron to over 800 microns.
Additional Information and Services

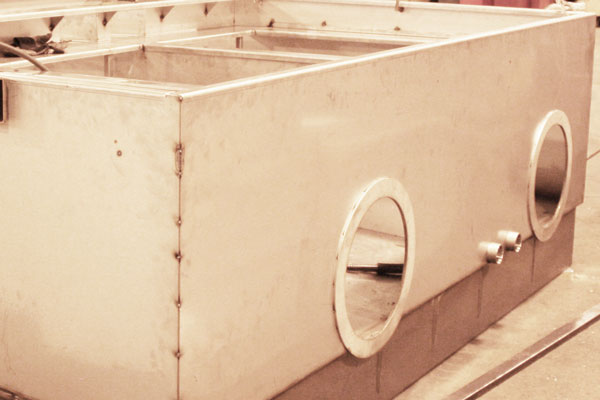

Superior Filter can accomodate any of your needs. We manufacturer our liquid filtration systems onsite and can work with you on custom requirements, if needed. In addition to our standard filters, we can also manufacture basins, reservoires, tanks, and other system components that you may need to house your filters.
Superior Filters can be installed individually or as part of a multi-filter system.
Options for inlets and outlets can accomodate virtually any configuration.

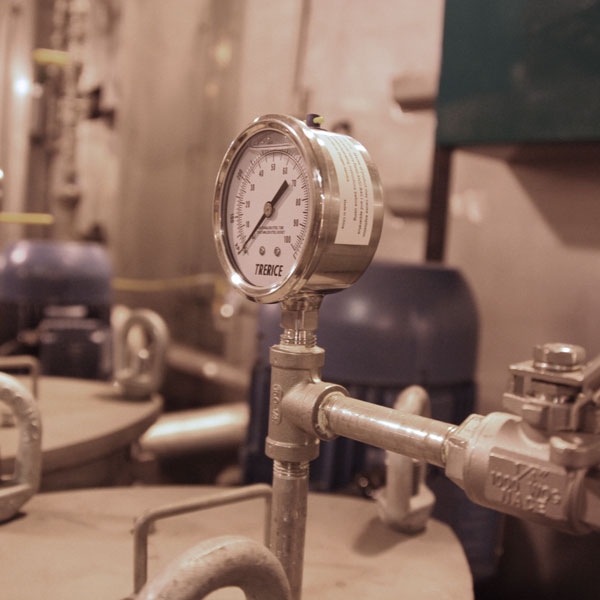

Filters come standard with ports. Gauges can be ordered and installed on housing.

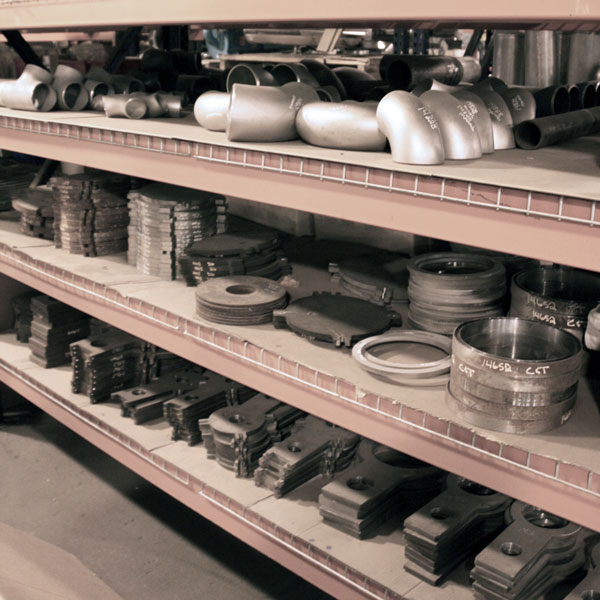

We also offer service and spare parts for liquid filtration systems.
Does your project need a tank, reservoire, or other custom-built item? Just ask. We can build virtually anything you need to complete your project.
Covers on our vessels require no tools, therefore, the cover is easily removed and the basket or bag is easily cleaned or replaced.
Maximum Temperature Specifications
The following are maximum temperatures at standard vessel design pressure. For higher temperatures, please contact us.
Gasket Materials
| Material | Temp |
|---|---|
| Buna N | 250°F |
| Ethylene | 350°F |
| Propylene | 350°F |
| Viton | 450°F |
| Teflon | 500°F |
Filter Media
| Material | Temp |
|---|---|
| Polyester | 300°F |
| Polypropylene | 225°F |
| Nylon | 325°F |
Housing Materials
| Material | Temp |
|---|---|
| Carbon Steel | 600°F |
| 304 Stainless Steel | 550°F |
